IC-FEP-VPX3d

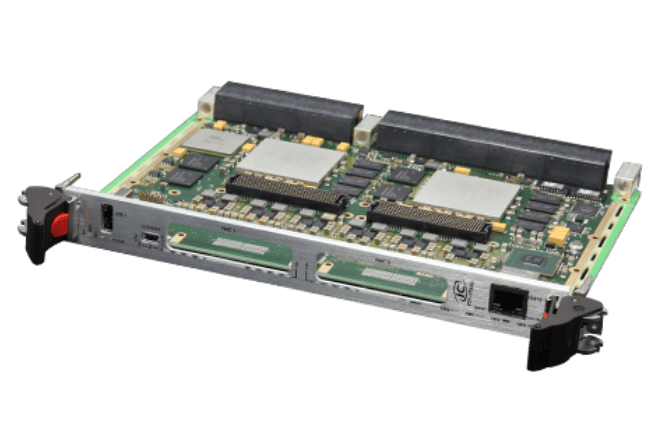

Kintex®  UltraScale™ FPGA 3U VPX board with FMC+ Site



The IC-FEP-VPX3d  is the perfect solution for applications requiring DSP intensive processing in a 3U VPX form factor. Powered by the Kintex ® UltraScale™ FPGA that offers a better performance/power consumption ratio compared to the previous FPGA, the IC-FEP-VPX3d and other building blocks (Intel ® and PowerPC SBCs, Ethernet Switches & Routers, FMC) running the IC Signal Processing Reference Design are the ideal platforms for customers who want to streamline development by concentrating their efforts on their most strategical tasks.



Features

  • Kintex® UltraScale™ KU060, KU85 or KU115
  • Two banks of DDR4: 64-bit wide, up to 4GB each
  • 2 * 128 MBytes of QSPI flash  (bitstreams storage)
  • 1 * 128 MBytes of QSPI flash (User Data storage)

VPX Interfaces

  • Up to three 4-lane fabric ports on P1/P2
    • 3 * GTH x4 (Fat Pipes P1A, P1B) (*)
    • Optional 3 * GTH x4 to LightConex™ 12TRX (*)
  • 28 GPIO’s from FPGA on P2, usable as single-ended or differential pairs

(*) depending on FPGA models

FMC+ VITA 57.4 interfaces

  • 6 GTH x4 links
  • 80 differential pairs
  • 6 reference clocks

  • Engineering kit : JTAG ports for direct FPGA configuration
  • Rear Transition Module
