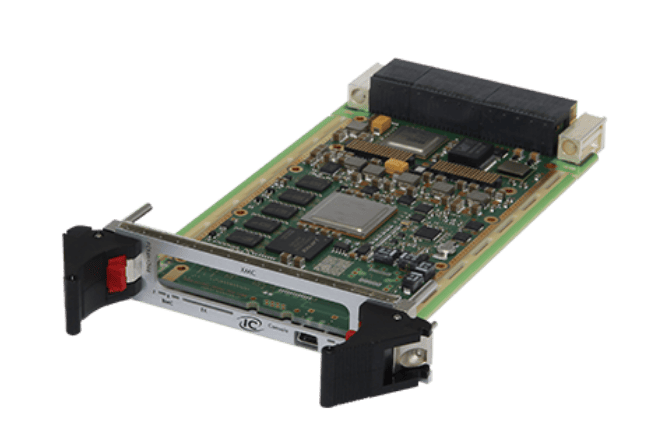

Designed for applications requiring high performance, low power, and multiple I/O capabilities, the IC PPC-VPX3d is a complete and versatile SBC dedicated to 3U VPX compact systems.


With the latest PowerPC QorIQ multicore processor, the IC-PPC-VX3d is capable of meeting compute-intensive needs, in industrial and harsh environments. In order meet High Performance Embedded Computing systems (HPEC) requirements, the Interface Concept software suite makes the integration of the IC-INT-VPX3d together with the IC FPGA (IC-FEP-xxx), switch (Cometh) and carriers boards easy.


One QorIQ T2080 (1.2 to 1.8 GHz) with

  • 4 GB (up to 8 GB) DDR3-ECC
  • Flash NOR
  • nvSRAM
  • SSD

  • one PCIe Gen2/3 x4 port (P1a)
  • two PCIe Gen2 x4 port (P1b, P1c), each configurable as four x1 ports
  • 2 * Ethernet ports available as 10GBase-KR or GigaBaseKX (P1d)
  • 1 * Ethernet port available as 10GBase-T (P1d)
  • 1 * RS232 console port available on P1
  • 2 * RS422/RS422 UART available on P2
  • 2 * USB2 ports available on P2
  • 2 * SATA ports available on P2
  • GPIOs on P2

  • 1 * XMC slot:
  • XMC PCIe x4,
  • IOs on P2 (VITA 46.9 X8d + X12d)
  • 1 * 10G Ethernet port (auto-media detect 10GBase-T/SFP+)
