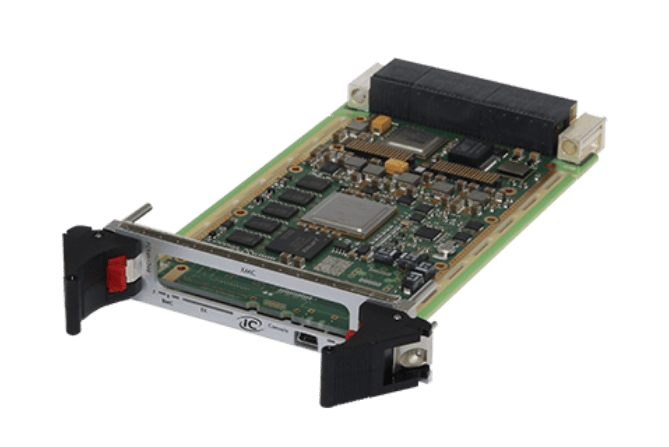

IC-INT-VPX3e

Intel® Xeon (Broadwell-DE SoC) SBC



The IC-INT-VPX3e is a powerful OpenVPX 3U Single Board Computer (SBC)  based on the Broadwell-DE processor – 14nm High Performance Chip of Intel’s Low Power Spectrum.

Combined with IC’s ComEth 4580a/4582a 10 Gigabit Ethernet router or hybrid ComEth4410a switch (PCIe & Ethernet) and other IC’s Processor/FPGAs boards with IC’s software / Firmware libraries, the IC-INT VPX3e is the key building block of the next High Performance Embedded Computing systems (HPEC).



Features

  • One Intel® Xeon® Processor D-15xx
  • Two banks of DDR4 with ECC (up to 8GB / Bank)
  • Boot flash memory
  • External independant RTC with supercap backup
  • Thermal/voltage monitoring sensors
  • One SATA NAND SSD (up to 16GB)

  • 4 * PCIe x4 ports (three on P1A/P1B/P1C , one on P2A)
  • 2 * 10GBase-KR Ethernet ports
  • 1 * 1000Base-T Ethernet port
  • 1 * RS232 console port (front or rear)
  • 1 * rear USB 3.0 ports
  • 3 * rear USB 2.0 ports (1 * front exclusive with XMC / 2 * rear)
  • 4 * rear SATA interfaces
  • 6 * GPIOs

  • Engineering kit for debug : JTAG/COP, console…
  • 3U Rear Transition Module
