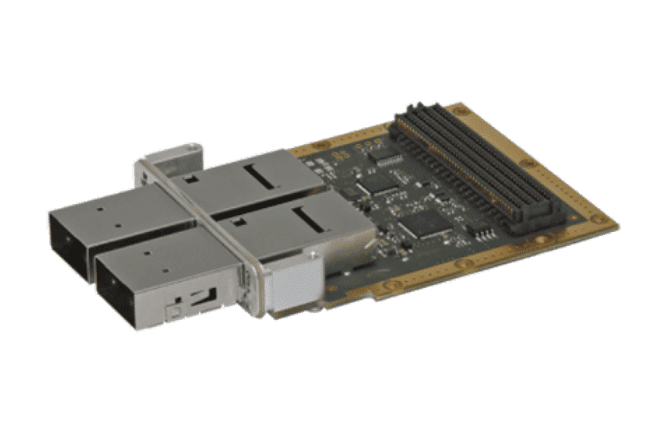

IC-GRA-XMCe – AMD E9170 Graphics XMC board


The IC-GRA-XMCe is an ultra-low-power graphic XMC mezzanine board providing cutting-edge video quality and performance for military/aerospace (radar, SIGINT, ELINT, COMINT), medical imaging applications and industrial applications.


  •  1* 8-lane PCIe Gen2/3 (rear Pn5 connector)
  • 1 display port compliant with DisplayPort 1.4 (rear Pn6 connector)

4 display ports compliant with DisplayPort 1.4

Each for the 5 display ports (front panel & rear connectors) features the following display timing:

  • DisplayPort 1.4 (including the DisplayPort Dual-Mode – DP++)
    • Up to two 5120*2880 pixel resolution displays @ 60 Hz refresh rates with dual-cable configuration


  • Up to five 4096*2160 pixel resolution displays @ 60 Hz refresh rates with single-cable configuration

  • AMD embedded Radeon™ E9170 GPU
  • 8 Compute Units (CU)
  • 1248 GFLOPs (single-precision)
  • 78.02 GFLOPs (double-precision)
  • 4GB on-chip GDDR5 memory (1GHz 128-bit)
