IC-DAC-FMCa – D/A conversion FPGA Mezzanine Card

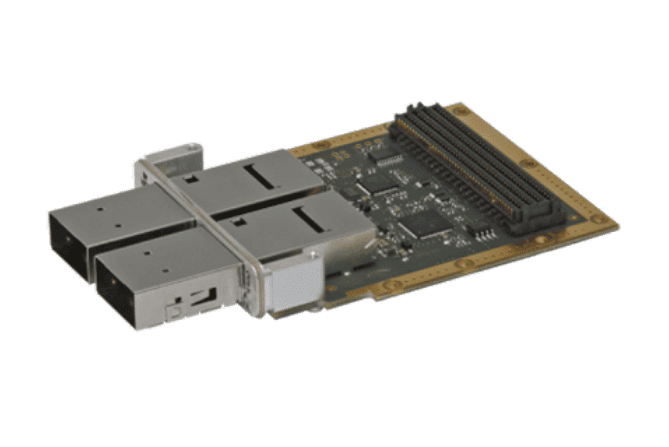

Designed for applications where high speed D/A converion is required, the IC-DAC-FMCa is a VITA 57.1 FPGA Mezzanine Card (FMC). It offers a flexible connectivity with our FPGA 3U and 6U Front End Processing boards running our Signal Processing Regerence Design (including signal acquisition, Processing DMA Engine, data storage, signal generation,…) thus allowing customers to streamline development of high performance signal acquisition systems by concentrating their efforts on their most critical tasks.

  • FMC – VITA57.1 HPC Compliant
  • 4 Channel 16-bit, 1 Gsps A/D
  • SSMC Connectors
  • Conduction-cooled compliant

  • Two DAC5682Z Texas Instruments™ DACs with 16 bit resolution
  • 4 channels with SSMC connectors
  • Output impedance 50 Ω AC coupled
  • Analog output bandwitdth (-3dB) 600 MHz. Full scale amplitude 1 V peak-peak

  • 16 LVDS data
  • Two’s complement of Offset binary
