IC-CMC-VPX3a

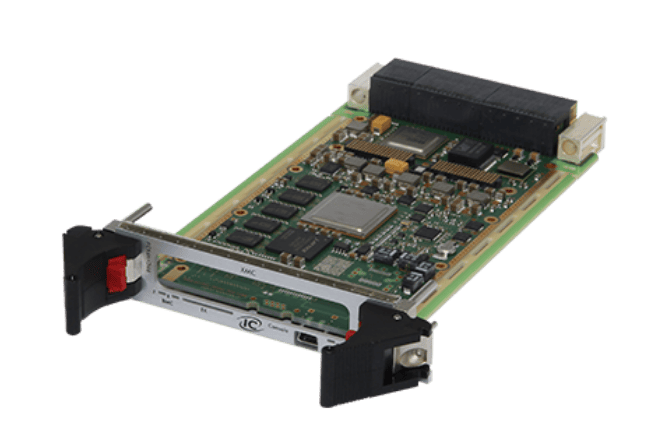

VPX 3U PMC/XMC carrier board



The IC-CMC-VPX3a is a carrier board designed to expand VPX systems capabilities with the large range of PMC/XMC mezzanines.

Thus associated with the IC-PQ3-XMCa or the IC-GRA-XMCb, designers immediately own a high-performance and low-power PQ3 based solution or an efficient 3D graphic product. Coupled with our serial or SSD PMC/
XMC boards, the IC-CMC-VPX3a completes the IOs or storage capabilities of VPX system.



Features

Data plane :

  • 8 lanes between VPX P1 (ports A&B) and XMC Jn5, or
  • 4 lanes between VPX P1 (ports A) and PCIe/PCI bridge (PMC)

Utility plane :

  • Power supplies,
  • Reset, NVMRO
  • Reference clock

Management plane :

  • IPMC (VITA46.11)
