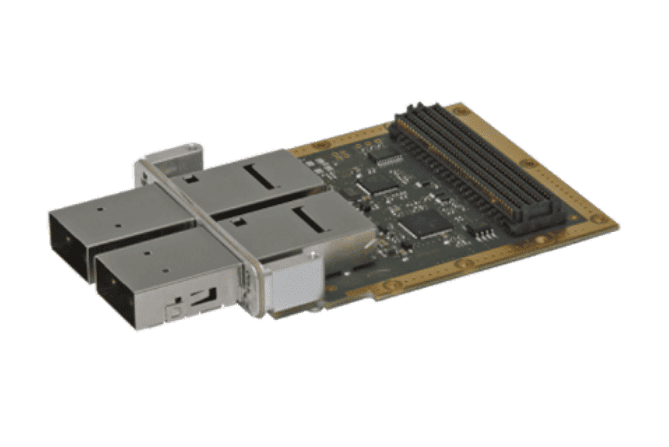

IC-GRA-XMCd – AMD E9171 Graphics XMC board
The IC-GRA-XMCd is both a new generation of GPU and GPGPU XMC board and an HDMI to ARINC 818 or 3G-SDI converter when populated with the on-board Xilinx Kintex® UltraScale™ FPGA. It does then meets the performance and functionalities needed for avionics and defence applications.
3 display outputs, each with the following display timing:
- DisplayPort 1.4
- Up to two 5120 × 2880 pixel resolution displays @60 Hz refresh rates with dual-cable configuration, or
- One 5120 × 880 pixel resolution display @ 60 Hz refresh rates with single-cable configuration, or
- Up to 3 x 3840 × 2160 @ 60 Hz or 4096 × 2160 @ 60 Hz displays
- HDMI™ 2.0b (6 Gbit/s)
- Up to five 3840 × 2160 @ 60 Hz, or
- Up to five 4096 × 2160 @ 60 Hz outputs
- Dual-link DVI
- Up to two 2560 × 1600 @ 60 Hz, or
- Up to two 1920 × 1200 @ 60 Hz
- Single-link DVI up to five 1920 × 1200 @ 60 Hz
2 optional ARINC818 or 3G-SDI Interfaces
PCI Express x8 lanes Gen2/Gen3
- AMD embedded Radeon™ E9171 GPU/ GPGPU
- 8 Compute Units
- 1.2 TFLOPS
- 4GB on-chip GDDR5 memory (1GHz 128-bit)
