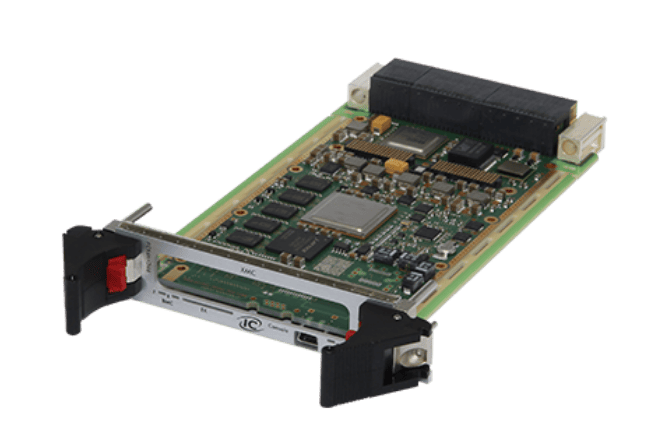

IC-ARM-VPX3b – 3U VPX LX2080A/LX2160A Arm-based SBC

View Enquiry List Call Us



Designed for applications requiring high processing and communication performance, together with low power, the IC-ARM-VPX3b is a complete and versatile SBC dedicated to 3U VPX compact systems.



The IC-ARM-VPX3b complies with the VITA 65.0 OpenVPX Slot profile SLT3-PAY-1F4F2U-14.2.14.



This 3U VPX board provides the defense and industrial embedded electronic markets with the latest technological innovations through the NXP Arm® Cortex-A72® based LX2160A multicore communication processor.



Features

  • Up to 2.2 GHz
  • Up to 32 GB DDR4-ECC
  • 128MB Quad SPI NOR Flash
  • 512 KB xSRAM
  • eMMC

  • Data plane (VPX P1A)
    • 4 * 10GBASE-KR or
    • 1 * PCIe Gen2/3 x4 port
  • Expansion plane
    • 1 * PCIe Gen2/3 x4 port [VPX P1B]
    • 2 * PCIe Gen2/3 x4 ports [VPX P2B & P2C] or
    • 1 * PCIe Gen2/3 x8 port [VPX P2B & P2C]
  • Control plane (VPX P1D)
    • 4 * 10GBASE-KR/KX
  • User-defined plane (VPX2D)
    • 1 * 1GBASE-T
    • 1 * 1GBASE-KX
    • 1 * CAN Bus
    • 2 (+2) * GPIOs [VPX P1]
    • 4 * GPIOs [VPX P2]
  • Serial ports (VPX P1)
    • 1 * RS232 UART
    • 1 * RS232/RS422 UART
  • USB (VPX P1)
    • 1 * USB2.0 / USB 3.1
    • 1 * USB2.0
