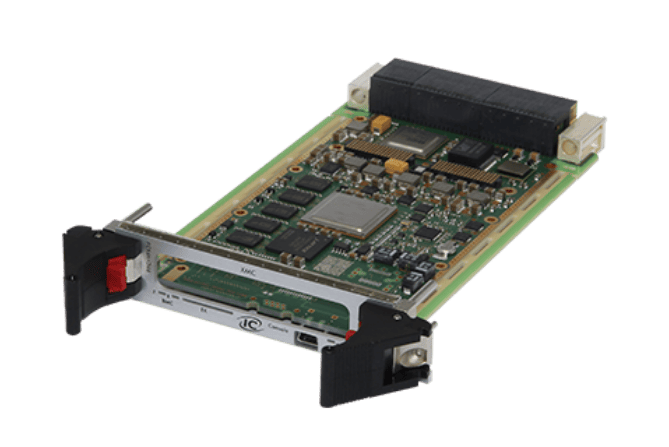

IC-ARM-VPX3a – 3U VPX LX2160A Arm-based SBC
Designed for applications requiring high processing and communication performance, together with low power, the IC-ARM-VPX3a is a complete and versatile SBC dedicated to 3U VPX compact systems.
The IC-ARM-VPX3a complies with the VITA 65.0 OpenVPX Slot profile SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16, and is developed in alignment with the SOSA™ Technical Standard.
This 3U VPX board provides the defense and industrial embedded electronic markets with the latest technological innovations through the NXP Arm® Cortex-A72® based LX2160A multicore communication processor.
Features
- 32 GB DDR4-ECC
- 128 MB Flash NOR Quad SPI
- 512 KB xSRAM
- eMMC
- Data plane (VPX P1A)
- 4 * 10GBASE-KR or
- 2 * 25GBASE-KR or
- 1 * 40GBASE-KR4 or
- 1 * 100GBASE-KR4
- Expansion plane (VPX P1B)
- 1 * PCIe Gen2/3 x4 port
- Control plane (VPX P1D & VPX P2B)
- 2 * 10GBASE-KR or 2 * 25GBas-KR
- 1 * 10GBASE-T port
- Storage (VPX P2B)
- 1 * SATA3
- Serial ports (VPX P1 & VPX P2)
- 1 * RS232 UART (VPXP1)
- 1 * RS232 / RS422 UAR (VPX P2)
- USB (VPX P2)
- 1 * USB2.0 / USB 3.1
- 1 * USB2.0
