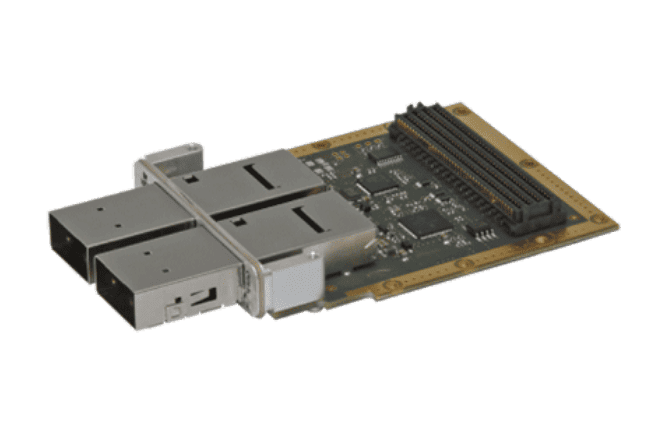

IC-ADC-FMCb – A/D Quad 14 bit 400 MSPS

A/D Quad 14 bit 400 MSPS


  • FMC – VITA57.1 HPC Compliant
  • 4 Channels 16-bit, 400Msps A/D
  • SSMC Connectors
  • Conduction-cooled compliant

  • Four ADS5474 Texas Instruments ADCs with 14 bit resolution (Four ADS5463/ADS54RF63 12 bit 500/550 Msps)
  • Four channels with SSMC connectors
  • Input impedance: 50 Ohm, AC coupled

  • Sampling Clock (CKI)
    • SSMC connector, 50 Ohm, AC coupled
  • Reference Clock (REFI)
  • Sampling Clock (CKI)
    • SSMC connector, 50 Ohm, AC coupled
  • Clocking options
    • Directly driven on front panel (CKI)
    • VCXO locked on external reference
    • VCXO locked on internal TCXO
  • Clock Output (CKO)
    • SSMC connector, 50 Ohm, AC coupled

  • SSMC connector, 50 Ohm, AC/DC coupled
  • LVPCEL or Single ended

  • 14 LVDS data + 1 Over-range + 1 LVDS clock
  • Offset binary
